2 Port POE Extender 10/100Mbps 1.0gbps with IEEE 802.3af Standard Input / Output for IP Camera Extend 100 meters for POE range
![]() |
| 2 Port POE Extender 10/100Mbps 1.0gbps with IEEE 802.3af Standard Input / Output for IP Camera Extend 100 meters for POE range |
The best product you are looking for is "2 Port POE Extender 10/100Mbps 1.0gbps with IEEE 802.3af Standard Input / Output for IP Camera Extend 100 meters for POE range". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 17 |
| Product id | 1005001388067897 |
| Vendor | INGcctv Store |
| Category | Security & Protection - Transmission & Cables |
Buy Now On Aliexpress
Description :







2 Port 10/100Mbps POE Extender 1.0Gbps with IEEE 802.3at/af Standard Input / Output for IP Camera Extend 100 meters for POE range

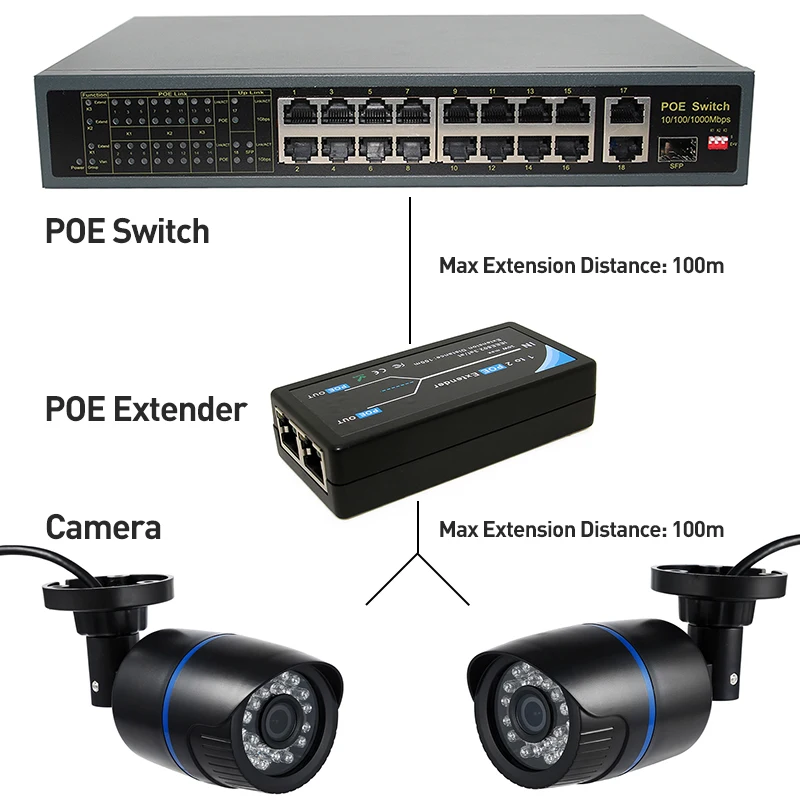

POE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.
The PoE Extender supports 10/100Mbps data rates and delivers 802.3af power levels, up to 15.4W, The PoE Extender does not require local power and is powered via the PoE input. Extended PoE installation range by additional 100m
Supports 10/100Mbps data rates
- Provides 802.3af power levels when powered by any 802.3at source
- Extenders can be cascaded to reach up to 700m
- Cost effective installation - no need for local power
- Plug and play installation - no configuration needed

Comply with IEEE 802.af Power over Ethernet (10/100M Supported)
Extender the range of PoE an additional 100 meters

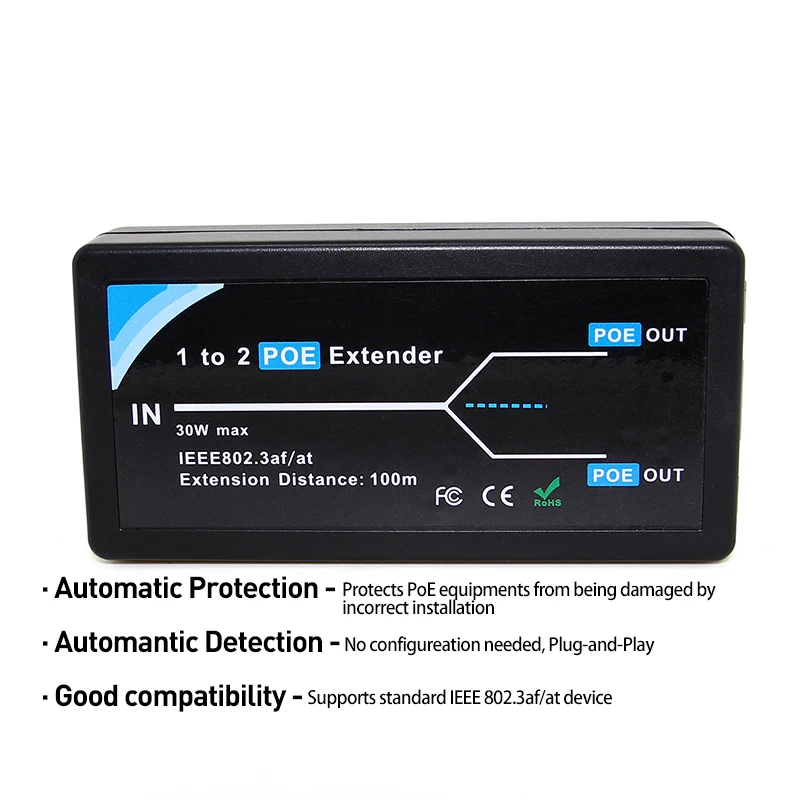

Automatically detects and protects PoE equipment from being damaged by incorrect installation
Plug-and Play no configuration required
2 Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
2-Port PoE Extender has 3 10/100M Lan ports, among them, one for power input, the other two for power output. Comply with 10/100BASE-TX,IEEE 802.3 af-PoE.
Power input for one port is 13W. Power output for four port is 12.2W.
Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets
Installed at hotels, schools, buildings, villages, etc.

POE input: 1 RJ45 port (DC 44-57V, 802.3at)
POE output: 2 RJ45 port (48V, 802.3af)
POE Pin Output: 1/2(+), 3/6(-); MAX Power 15W
Network Medium: Cat5 or better UTP cables (less than 120m)
Repeater Mode: Store and forward
MAC Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 1.0Gbps
PoE Standard: IEEE 802.3af
Input power: 13 Watts
Output power: 12.2 Watts
Power Supply Type: 1/2+,3/6-,Mode A, End-Span
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
Working temperature: -10°c to 45°c
Working Humidity: 5%~90%, No Condensation;

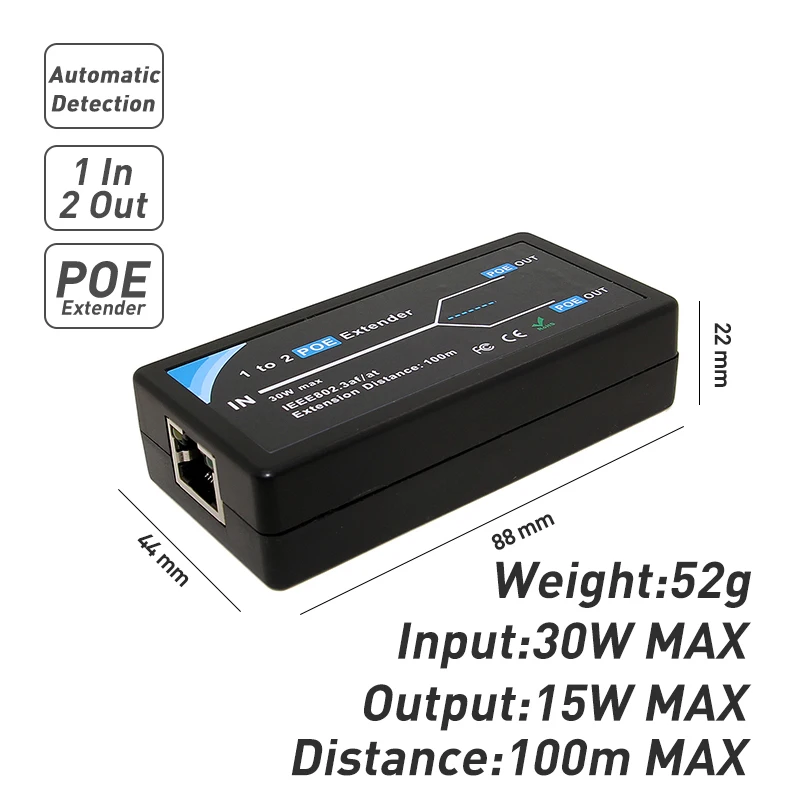

Dimension: 44x88x22mm / 2.95'' x 3.46'' x 0.86''
Weight: 52g

1 x POE Extender 1.0Gbps (POE5003)
Note:Please don't place any heavy thing on the PoE extender;To prevent the water seeping into the extender, please keep PoE extender away wet environment;Suggest to use PoE extender indoors. When installing the extender in outdoor, please install it in a waterproof place.
