LPSECURITY USR-TCP232-304 ethernet converters Serial RS485 to TCP IP with DNS DHCP



LPSECURITY USR-TCP232-304 ethernet converters Serial RS485 to TCP IP with DNS DHCP

The best product you are looking for is "LPSECURITY USR-TCP232-304 ethernet converters Serial RS485 to TCP IP with DNS DHCP". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..

Product Details

Name	Details
Buy now just	US $15.45 - 16.49
Discount
Product id	32809933898
Vendor	Shenzhen NSEEl Automation & Security Store
Category	Security & Protection - Building Automation

Buy Now On Aliexpress

Building Automation

Building Automation

Building Automation

Description :

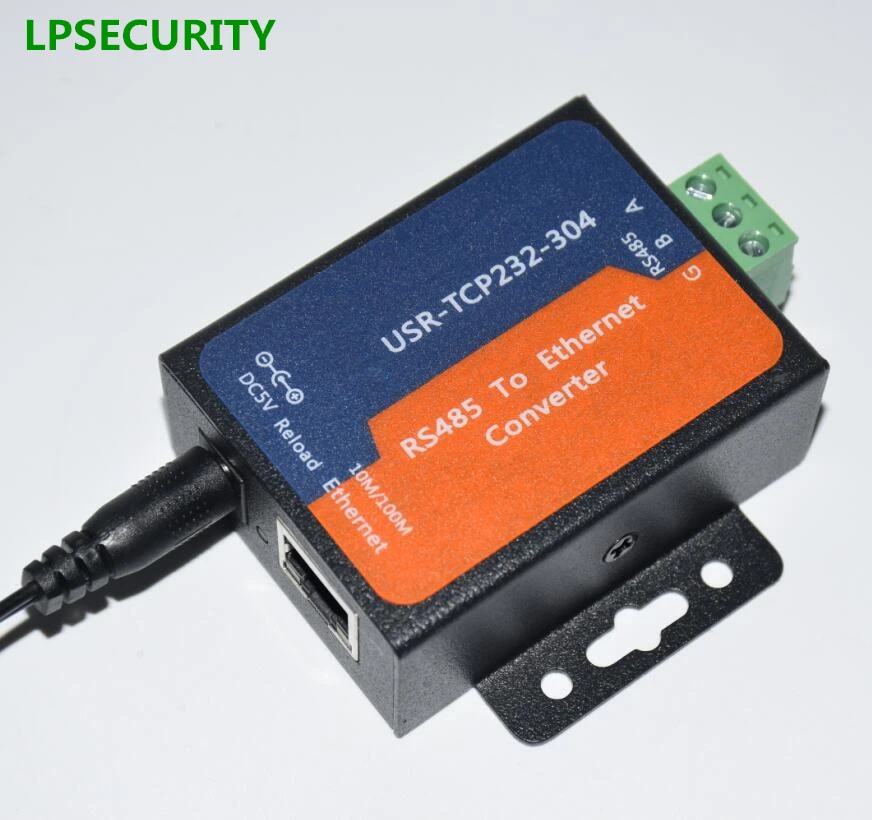

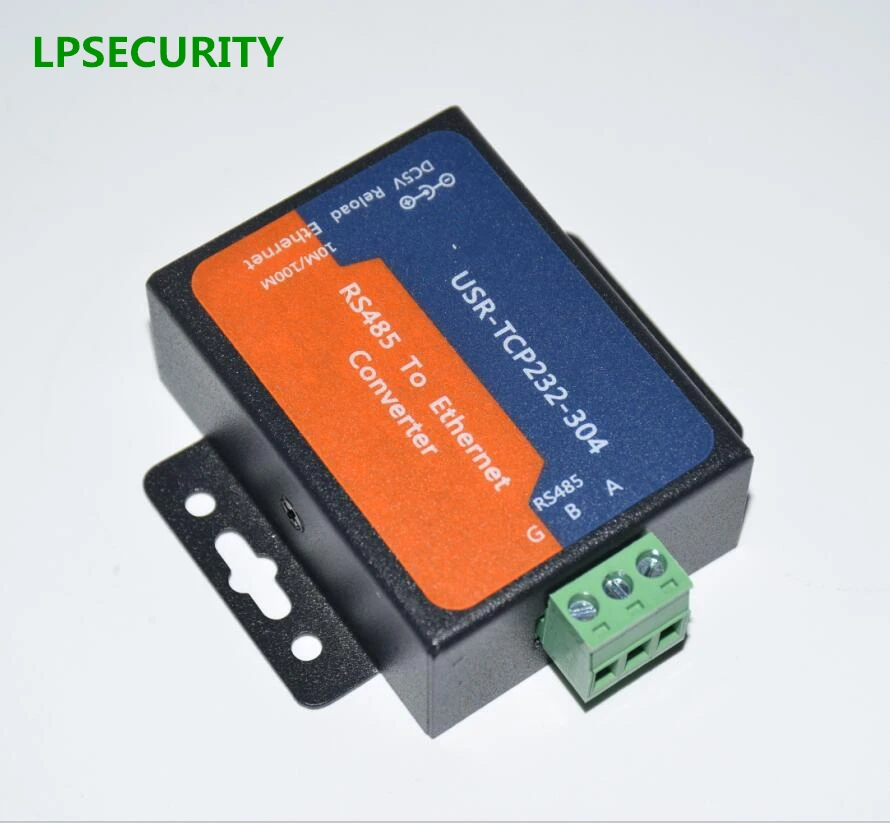

USR-TCp232-304 is a low-cost Ethernet Converters, whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.

Features of RS485 Ethernet Converter

• Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Support DNS function
• Set parameters through webpage
• Upgrade firmware via network
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
• Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
• Support virtual serial port and provide corresponding software USR-VCOM
• Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
• User-defined registration package mechanism, check connection status and use as custom packet header
• Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
• The global unique MAC address bought from IEEE, user can define MAC address
• Restore factory default
• Across the gateway, switches, routers
• Can work in LAN, also can work in the Internet (external network)
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
• Support customization

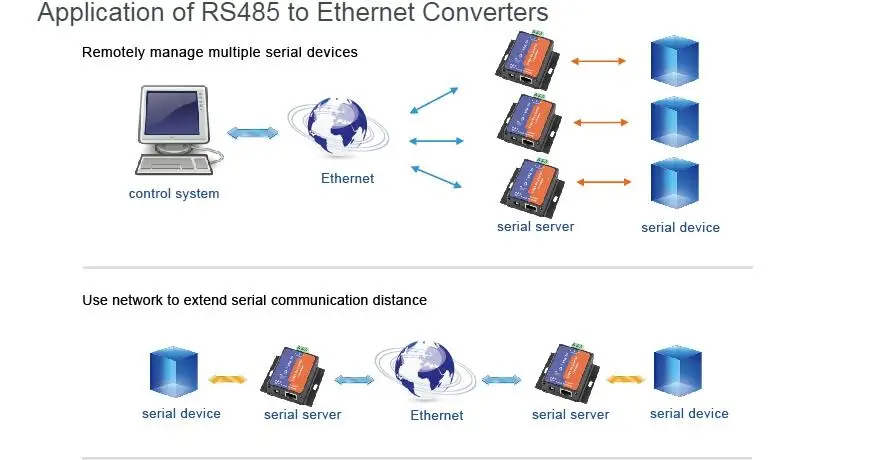

Application Field of RS485 Ethernet Converter

• Industrial data transmission, industrial automation
• security and protection monitoring, public security
• Smart home, power control, environmental monitoring, intelligent agriculture
• Door check on work attendance system, POS system, rice selling system
• Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
•
